Industrial Exhaust Fans & Blowers


AirPro // Products

Heavy Duty Industrial Exhaust Fans for Air & Light Dust

Industrial exhaust fans and blowers handle air involving clean dry gas, light particles or saturated gas. They are often components of heavy industrial equipment used to provide ventilation, replacing exhaust air with fresh air. Many applications depend on this fan type for forced and induced draft air.

Industrial Exhaust Fan Description

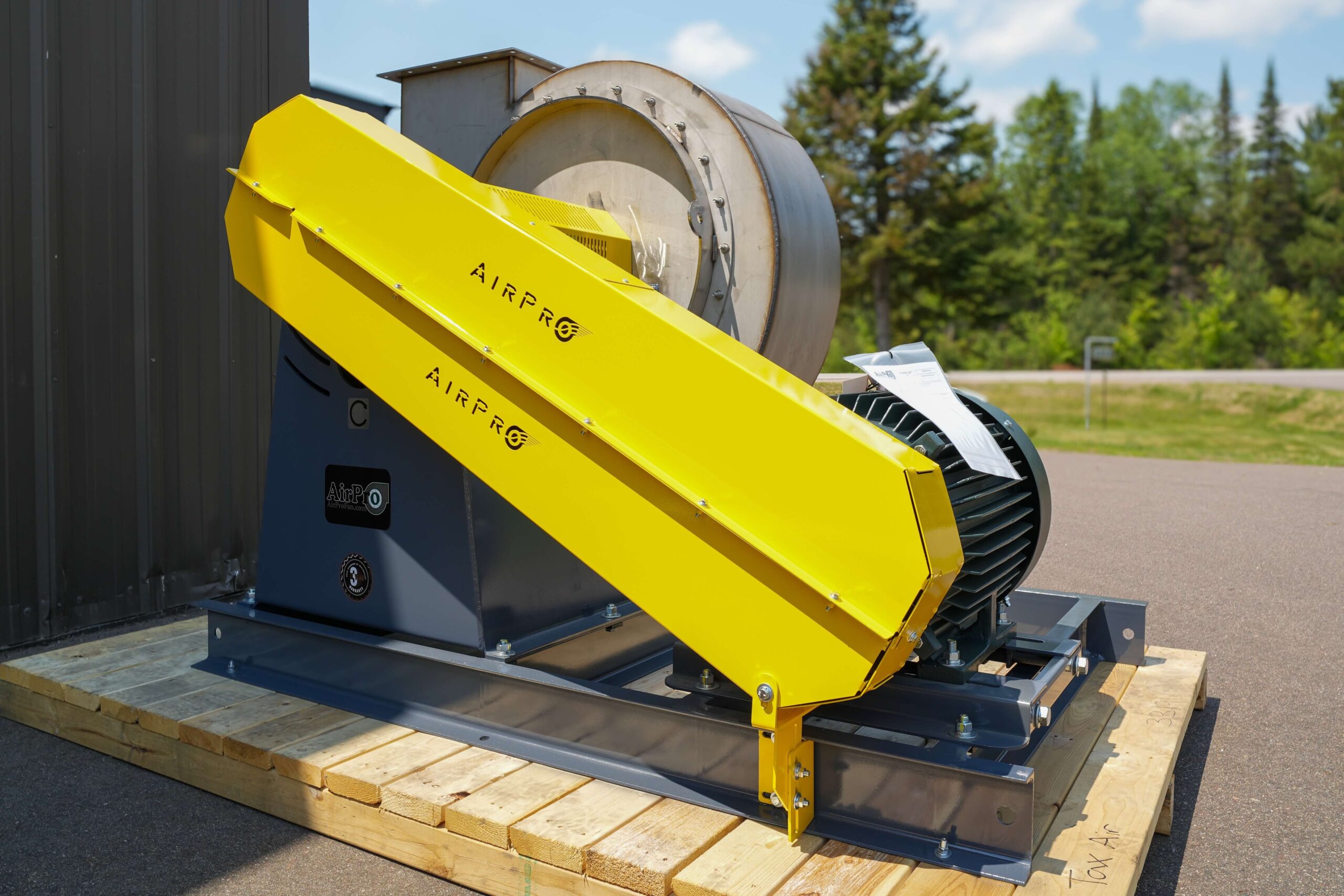

AirPro’s air-handling industrial exhaust fan (IEAH) features a streamlined and heavy-duty design, with a backward inclined blade design for increased efficiency. The blade is also angled to reduce material buildup and braced for extra support.

Our IEAH and backward curved models can be used for similar applications. The IEAH often has a lower upfront cost than its backward curved counterpart, while the backward curved design often offers higher static efficiencies. Our application engineering group will work with you to evaluate your fan options and maximize your return on investment.


Industrial Exhaust Fan Performance & Design

  • Volume: up to 80,000 CFM
  • Pressure: up to 45” wg
  • Temperature: up to 1200°F
  • Static Efficiency: up to 70%
  • Drive: Belt and direct

AirPro designs and builds both standard and custom industrial exhaust fans with an unsurpassed level of quality and service. All of our products are also backed by our industry-leading 3-year warranty.

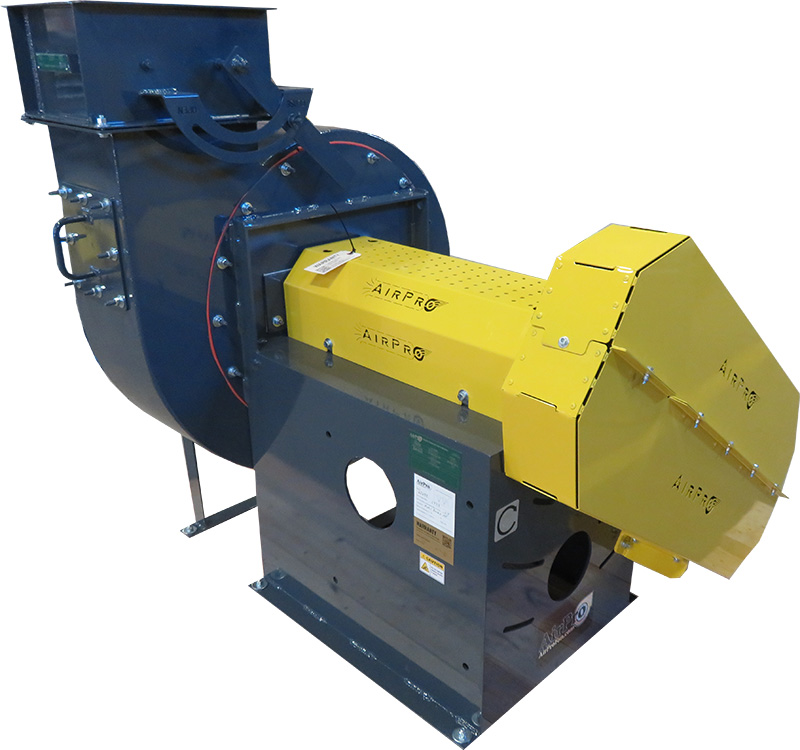

Cyclone Exhaust Fan for Industrial Air Handling

This cyclone exhaust fan required a straightforward industrial air handling exhaust fan with an opposed blade for increased efficiency and reduced material build-up. An outlet damper paired with the 25HP Arrangement 9 belt-driven motor mounted to the side of the fan allows for variable flow control.

A simple but important application, the cyclone exhaust fan pulls air through the separator, where heavy, abrasive materials fall out the bottom while lower-density air is allowed to exhaust through the system (which might include an oxidizer or dust collector) to the open air. Our industrial air handling exhaust fans are extremely heavy-duty and robust to handle this abrasive airstream.

  • Product Type: IEAH (industrial exhauster)
  • Application: Cyclone exhaust fan
  • Description: Class 30, Arr. 9, 150ºF max temp design
  • Performance: 4,000 CFM @ 23″ wg static pressure

Common Industrial Exhaust Fan & Blower Applications

Pollution Control:

Our industrial exhaust fans are used with oxidizers, scrubbers, and other industrial equipment to remove fumes from a variety of manufacturing processes.

General Ventilation:

Minimum standards of air quality are regulated across the spectrum of industry. Learn how our fans are used to improve and maintain acceptable levels of air quality.

Additional Applications:

IEAH fans offer solutions to many other applications requiring process air, and our offerings include many custom features along with our standard designs.
