High Temperature Fans

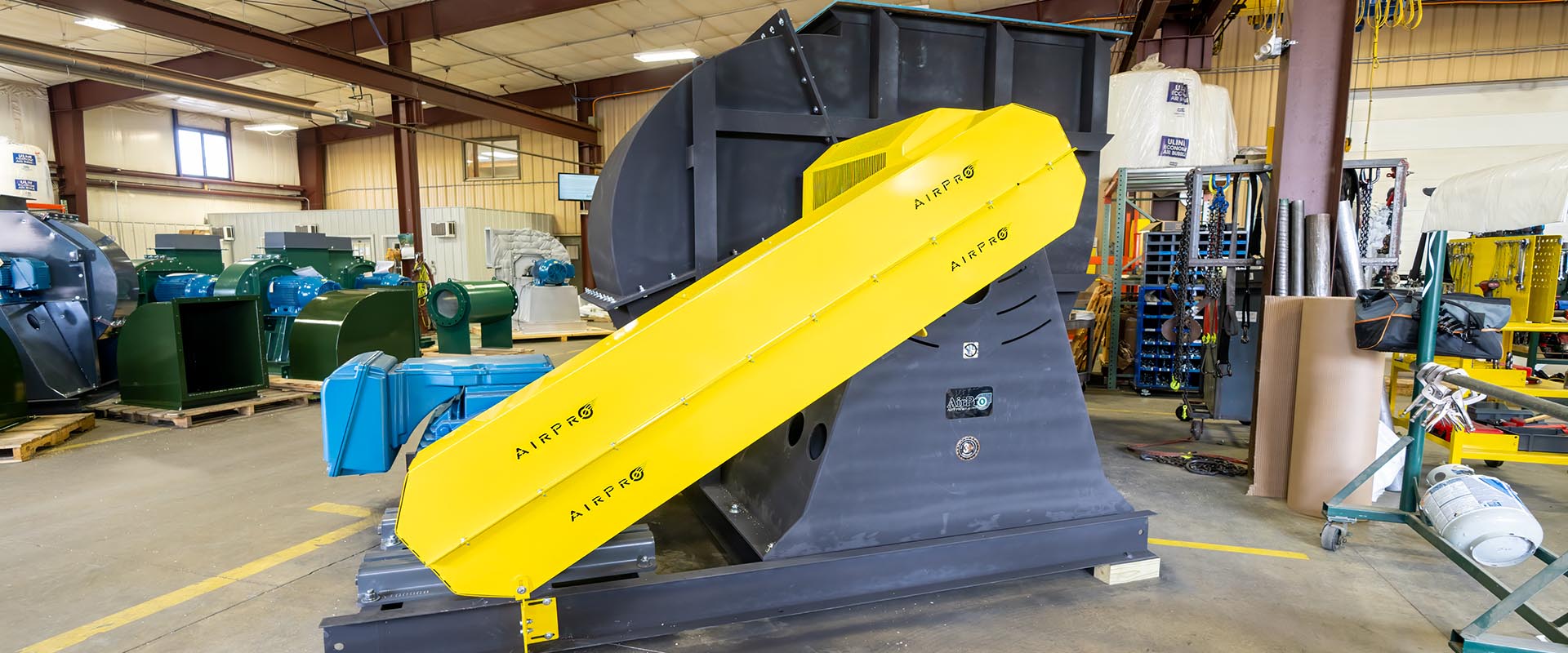

High-Temperature Centrifugal Fans for Industrial Applications

High-temperature process airstreams are conveyed using specially designed high-temperature centrifugal fans that can handle temperatures of up to 1800 degrees F. Many industrial processes rely on high-temperature process heat. High-temperature operations such as heat treating, stress relieving, industrial furnaces, and ovens use convection to circulate heated air within the chamber.

Fans and blowers not properly designed for this purpose will catastrophically fail when used at temperatures above their design.
Your required pressure and airflow will dictate your high-temperature centrifugal fan selection and specifications. Scroll or hyperlink down to find Application Featured Products, Case Studies, and further application details.

Primary Industries for High-Temperature Centrifugal Fans

Many varied industries from food processing and energy, to metals, plastic, glass, paper, and pulp processing use combustion air blowers for heating and drying purposes.

High-Temperature Centrifugal Fan Applications Include:

  • Aluminum Furnaces
  • Annealing Ovens
  • Atmosphere Furnaces
  • Batch Type Furnaces
  • Bell Furnaces
  • Car Bottom Furnaces
  • Cover & Base Furnaces
  • Continuous Belt Furnaces
  • Continuous Furnaces
  • High-Temperature Exhausts
  • Homogenizing Furnaces
  • Low-Temperature Ovens
  • Nitriding Furnaces
  • Pusher Furnaces
  • Stress Relief Ovens & Furnaces
  • Roller Hearth Furnaces
  • Thermal Treatment/Tempering
  • Tip-Up Furnaces

Selecting and Specifying High-Temperature Centrifugal Fans

High-Temperature process airstreams require specially designed high-temperature centrifugal fans. Along with the Radial Paddle Wheel Fan, the Forward Curved Fan is one of the select designs that can take the heat.

Fan Models Commonly Used
  • Forward Curved
  • Backward Inclined
  • Paddle Wheel
  • High Temperature Plug Fan

Fan Arrangements

Fan Arrangements indicate how the motors mount to and drive the fans. The specification will depend on your application and the fan(s) selected. Here are two examples:

Arrangement 1 – Belt Drive with an overhung impeller. The fan and motor mount separately to a unitary base.

Arrangement 8 – Direct Drive with an overhung impeller. The fan shaft is directly coupled to the motor shaft with a flexible coupling.

Accessories & Design

Proximity to and processing of high temperatures and possibly corrosive gasses requires careful design and customization to handle the extremes.

Here are some of the accessories and features you may see in process cooling fan applications:

  • 304/316 Stainless Steel
  • SSPC-SP10 bead blast surface preparation
  • Food-grade Teflon shaft seal
  • Stainless BFM fittings
  • Double-width housing for higher airflow capacity
  • Bearings and motors that are isolated from the process. Shaft seals with ceramic felt elements.
  • Flex Connectors to accommodate shifting during rapid temperature change
  • Spring Vibration Isolators to protect the fan from excessive vibration
  • Inlet Silencer for noise control on the fan inlet
  • Inlet Vane Damper, Variable Frequency Drive (VFD), Outlet Damper, or a combination for volume and pressure control
  • Inlet Filter or Screen to keep the airstream clean and avoid damaging the dampers
  • Inlet Box if space is tight for the ductwork
  • Vibration and temperature sensors to monitor bearing and fan health and prevent unplanned outages
  • Split Housing for easier maintenance access to the fan wheel and shaft
  • Proper installation and maintenance to ensure safe startup and operations

Featured Products

High Temperature Fans

Learn More

High Pressure Blowers

Learn More

Backward Inclined Fans

Learn More

Case Studies

  • Dryer Exhaust Fan
  • High Temp Burner Fan
  • Heat Recovery Steam Generator (HRSG)
  • High-Temperature Purge Fan
View All

Talk with Our Application Engineers

If you feel overwhelmed by all this information, don’t despair! We have a team of application engineers who are happy to talk with you and select the best fan for your application. You can call 715-365-3267, email [email protected], or send us your information, and one of our engineers will connect with you.
