Centrifugal Fans for Induced Draft Applications
Induced draft fans (ID fans) often process air in harsh conditions including high temperatures, acidic airstreams, and other extreme exhaust gases. They focus the volume and pressure at the inlet of the fan to pull air and other materials or elements through the system. Extreme conditions can require special attention due to imbalance, excessive vibration, temperature, maintenance, and operating costs. However, they can also operate at higher efficiencies relative to forced draft fans.
The induced draft fan is situated above the bundle, creating negative air pressure to draw the air through to the next step of the process, which could be another application such as a dryer or an air treatment system for pollution control. Induced draft fans can work in concert with forced draft fans to maintain efficient and steady air pressure. Your induced draft fan application environment and airflow will dictate fan selection and specifications.
Primary Industries for Induced Draft Fans
Induced draft fans are found across industries. However, because they are instrumental in processing air, gas, and materials under harsh conditions, you can be sure you’ll need an induced draft fan in any or all of these industries:
- Agricultural processing
- Automotive OEM
- Building materials
- Chemical processing
- Food processing
- Glass manufacturing
- Metals & mining
- Oil & gas
- Paint & surface coatings
- Pharmaceuticals
- Power plants
- Printing, packaging & labeling
- Pulp & paper
- Rubber & plastics
- Semiconductor & electronics
- Wastewater treatment
Induced Draft Fan Selection & Specification
As mentioned above, induced draft fans typically operate at higher efficiencies relative to forced draft fans, though it depends on the nuances of your application. They also have better process control and stability with reduced exposure to elements like wind, rain, and hail. Select and design your fans based on function, flow, and pressure.
Typical design types for induced draft fans:
Backward Curved
- BCES — High-Efficiency Single-Width
- BCHD — High-Volume Double-Width
- BCHS — High-Volume Single-Width
- BCLS — Low-Volume Single-Width
- BCMS — Medium-Volume Single-Width
- BCNS — Narrow Single-Width
Backward Inclined
- BIHD — High-Volume Double-Width
- BIHS — High-Volume Single-Width
- BILS — Low-Volume Single-Width
- BIMS — Medium-Volume Single-Width
Industrial Exhaust
- IEAH — Industrial Exhaust Air Handler
- IEFB — Industrial Exhaust Flat Backplate
- IEPW — Industrial Exhaust Paddle Wheel
- IERS — Industrial Exhaust Radial Frontplated
- IETW/IETX — Industrial Exhaust Trim-Handling Wheel
Radial-Tipped
- RTMS – Medium-Volume Single-Width
- RTHS – High-Volume Single-Width
Axial
- AX7E — Fixed Pitch Impeller (“E” Hub Ratio)
- AX7K — Fixed Pitch Impeller (“K” Hub Ratio)
Mixed Flow
- MXFL — Mixed Flow
Trim & Scrap
- TASH — Trim and Scrap Handling
FEATURED FAN

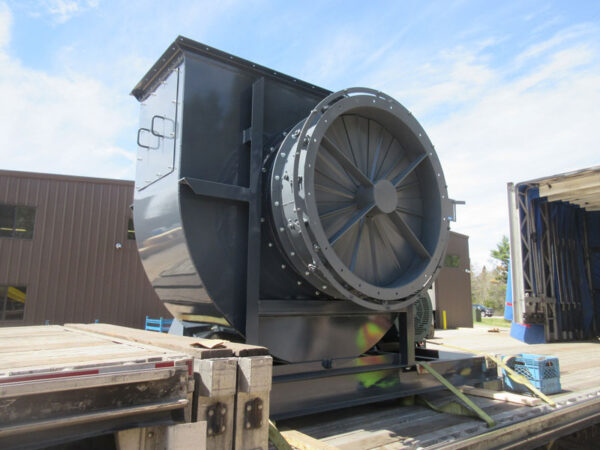

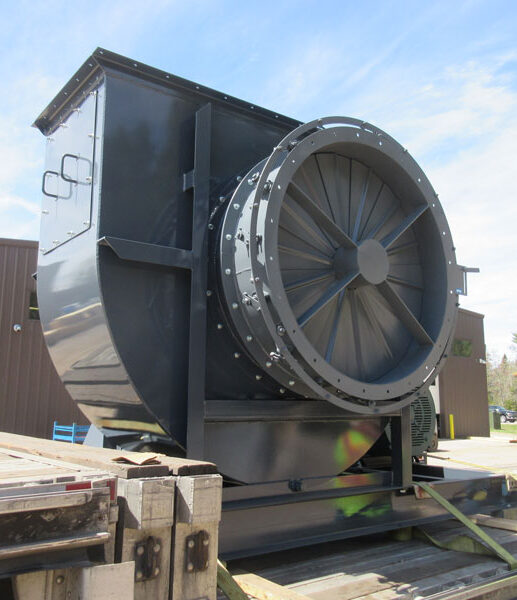

Induced Draft Fan for Continuous Hemp Dryer System
AirPro engineered and delivered a high-efficiency induced draft fan for a continuous hemp drying system to maintain safe, controlled processing conditions. The fan creates negative pressure at the dryer outlet to pull hemp biomass and entrained particles through the system while keeping material safely distanced from the burner flame, supporting low-temperature drying via forced ambient air at the combustion chamber inlet.
A custom backward-curved design, built for continuous-duty operation in a demanding agricultural processing environment, provides reliable performance with airflow precisely regulated using an inlet vane damper.
- Product Type: BCHS (backward curved)
- Description: Class 4, Arr. 1 (belt drive), 250ºF max temp design, 1800 RPM max speed design
- Performance: 40,000+ CFM @ 21″ wg static pressure
- Features: 40.2″ diameter wheel; heavy-duty construction; inlet vane damper for airflow control; 250 HP motor; continuous-duty operation
Induced Fan & Blower Arrangements, Accessories, & Design
Industrial induced draft fan arrangements commonly used:
Fan arrangements indicate how the motors mount to and drive the fan. For induced draft fans, we typically use a direct drive arrangement. Usually, Arrangement 4 or Arrangement 8, unless the blower is very large, in which case we might specify an arrangement 7:
Arrangement 4
Direct drive with an overhung impeller. A low-cost arrangement, the fan wheel mounts directly on the motor shaft.
Arrangement 4V / Top Mount
Direct drive with an overhung impeller. The wheel also mounts directly on the motor shaft, but in a vertical position.
Arrangement 7
Direct drive with a center-hung impeller. The motor is directly coupled to the fan shaft with a bearing on either side of the fan wheel. Involves a bearing on either side of the fan wheel and is supported by the fan housing.
Arrangement 8
Direct drive with an overhung impeller. The fan shaft is directly coupled to the motor shaft with a flexible coupling.
Fan accessories & design considerations for induced draft applications:
The same harsh conditions (high temperatures, acidic airstreams, and other extreme exhaust gas) that make induced draft fans the right choice also make them critical components of operations and present risks to your fan’s health. If harsh environments present higher threats to your fan’s health, then it’s probably safe to assume your maintenance and operating costs will be higher.
Frequent vibration and temperature testing, fan cleaning, bearing lubrication, and higher power consumption are some of the factors you may want to consider when selecting your induced draft fan. For example, choosing a fan with high static efficiency may significantly lower your operating costs.
For ID fans, we often recommend the following fan or blower accessories:
- Flex Connectors – to accommodate shifting during rapid temperature change
- Spring Vibration Isolators – to protect the bearings and fan from excessive vibration and dangerous imbalances and help avoid outages that can be very costly
- Inlet Silencer – for noise control on the fan inlet
- Flow Control Options – includes inlet vane dampers, variable frequency drives (VFD), outlet dampers, or a combination, each offering control over airflow volume and pressure
- Inlet Filter or Screen – to keep debris from entering the airstream, preventing damage to the dampers
- Inlet Box – a solution for installations with limited ductwork space
- Purge Shaft Seal –to help prevent hot air from getting to the bearings through the shaft hole opening
- Vibration and Temperature Sensors – to monitor bearing and fan health in real time, enabling predictive maintenance and reducing unplanned downtime
- Split Housing – for easier maintenance access to the fan wheel and shaft for inspection and maintenance
